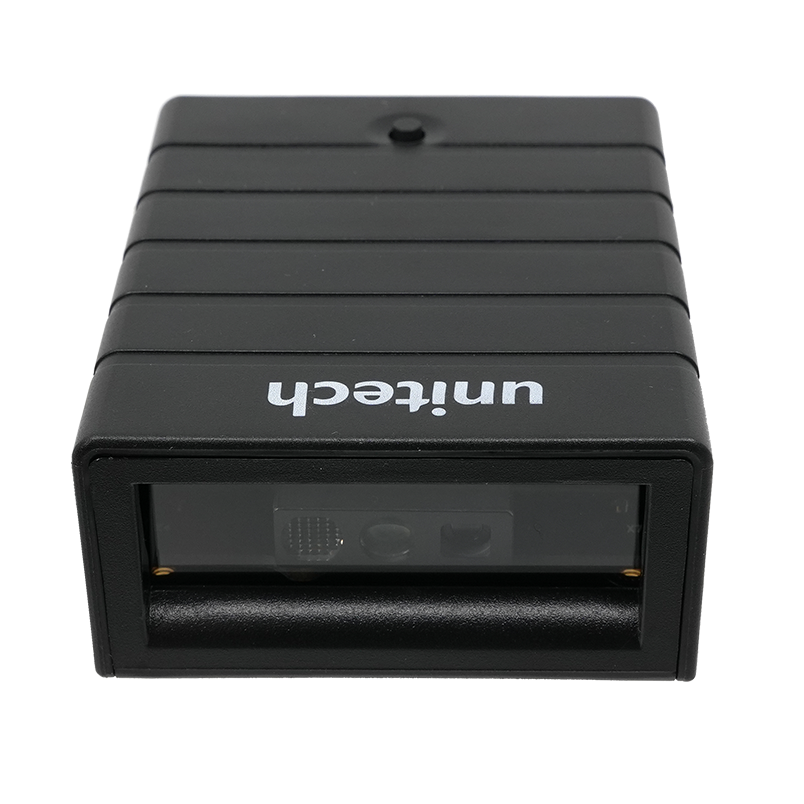

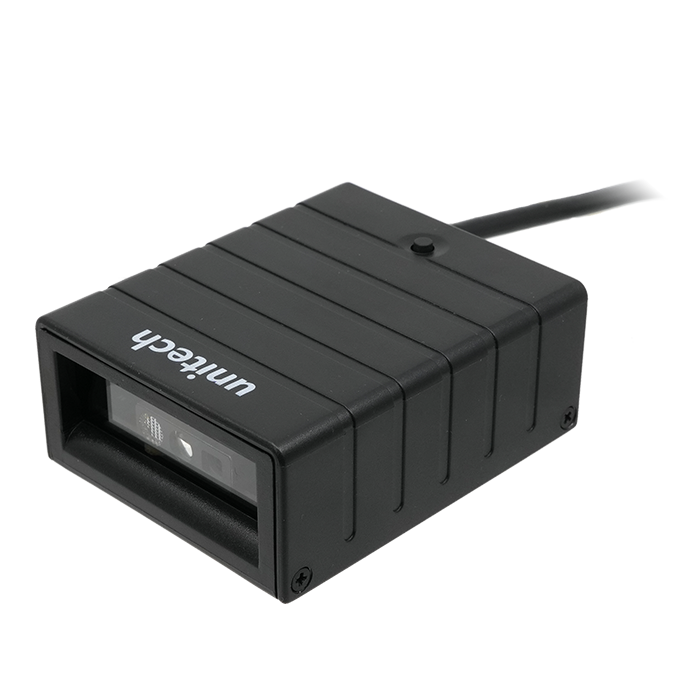

FC75

Fixed Mount Scanner

Compact Form Factor｜Support 1D and 2D Barcode Scanning｜RS232 & USB Interfaces

  • 1D

  • 2D

  • IP42

  • Retail

  • Logistics

  • Warehousing

  • Manufacturing

The FC75 fixed-mount barcode scanner combines a compact footprint with powerful scanning performance, making it an ideal solution for space-constrained environments. Designed to read both printed and on-screen barcodes with speed and accuracy, the FC75 offers flexible connectivity and robust durability—perfect for applications in warehousing, manufacturing, logistics, and retail.



Features

• Compact form factor for easy installation in space-limited environments
• Reads both 1D and 2D barcodes, including printed labels and digital codes on screens
• RS232 and USB interfaces for easy system integration
• Fast, aggressive scanning performance for efficient operations
• Trigger and presentation modes for hands-free or on-demand scanning
• IP42-rated sealing against dust and moisture for reliable operation in harsh environments
• Withstands multiple drops from 1.2 meters onto concrete

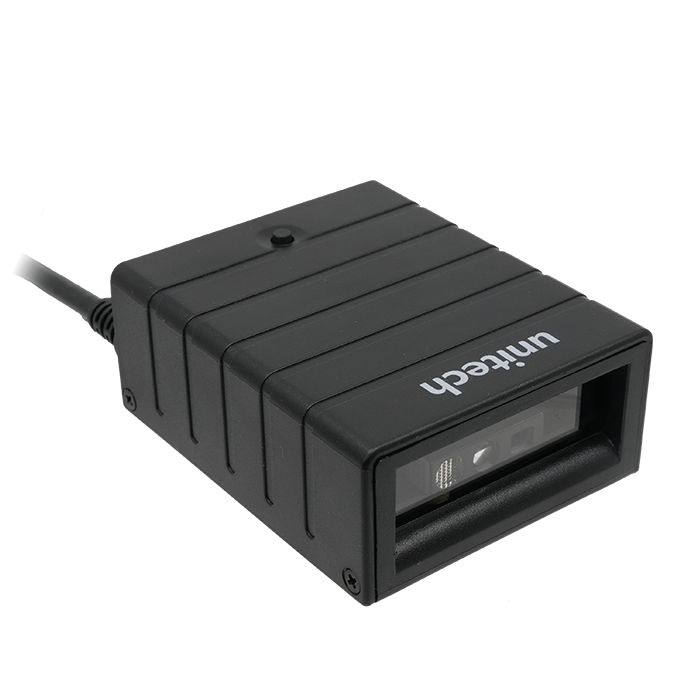

Compact and Versatile Design

With its space-saving footprint, the FC75 is purpose-built for smooth integration into a variety of operational setups. Whether mounted in warehouse workstations, manufacturing lines, logistics sorting areas, or retail counters, its compact design maximizes available workspace without sacrificing scanning speed or accuracy.

FC75 compact fixed scanner in a workspace context

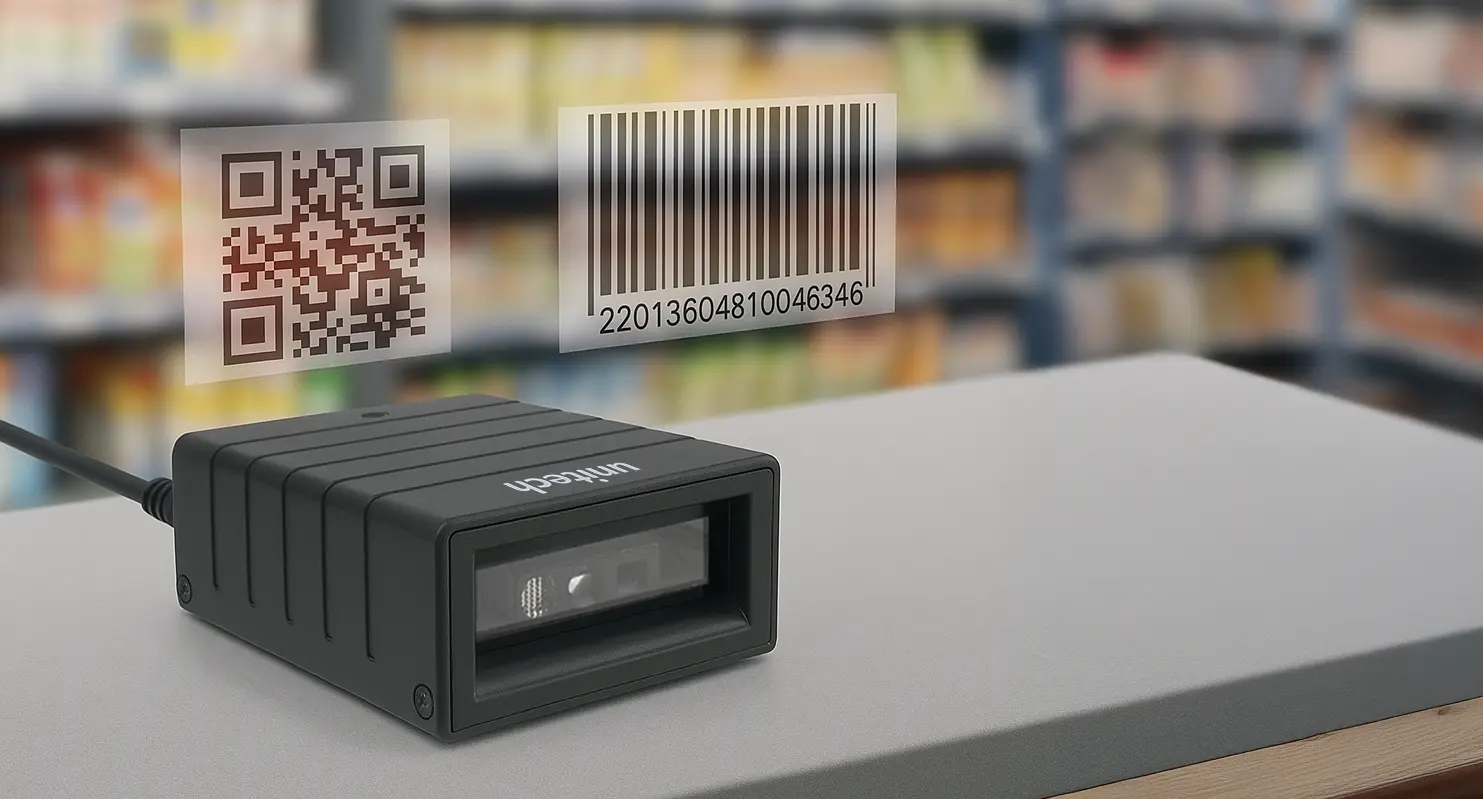

High-Performance 1D & 2D Barcode Scanning



Equipped with an advanced fixed-mount imager, the FC75 delivers reliable reading of both 1D and 2D barcodes. From printed labels to on-screen codes, it ensures fast and accurate capture, meeting the demands of diverse applications in warehousing, manufacturing, logistics, and retail operations.

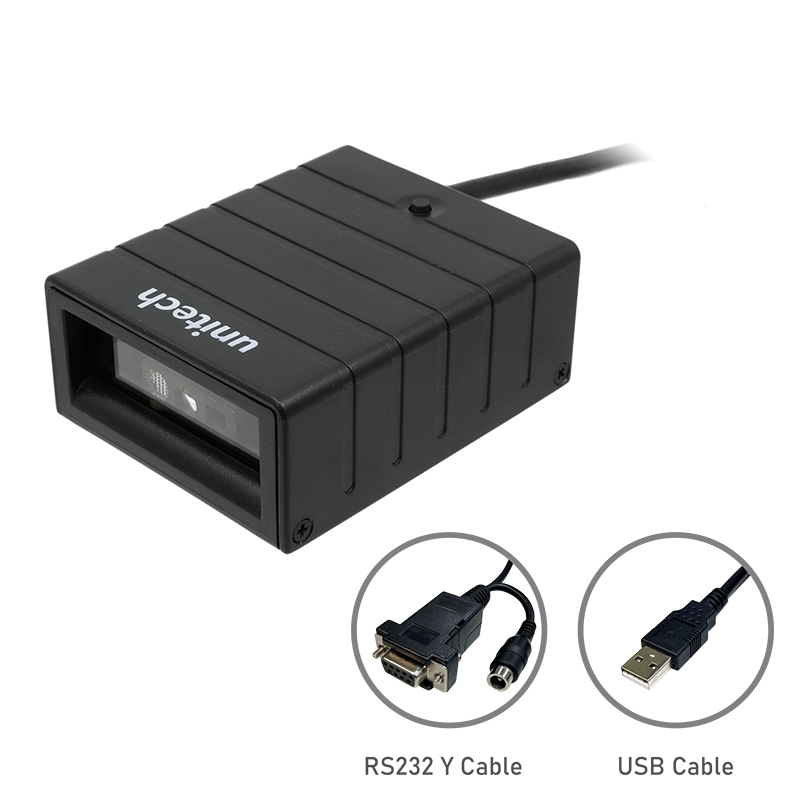

Flexible Connectivity with RS232 & USB

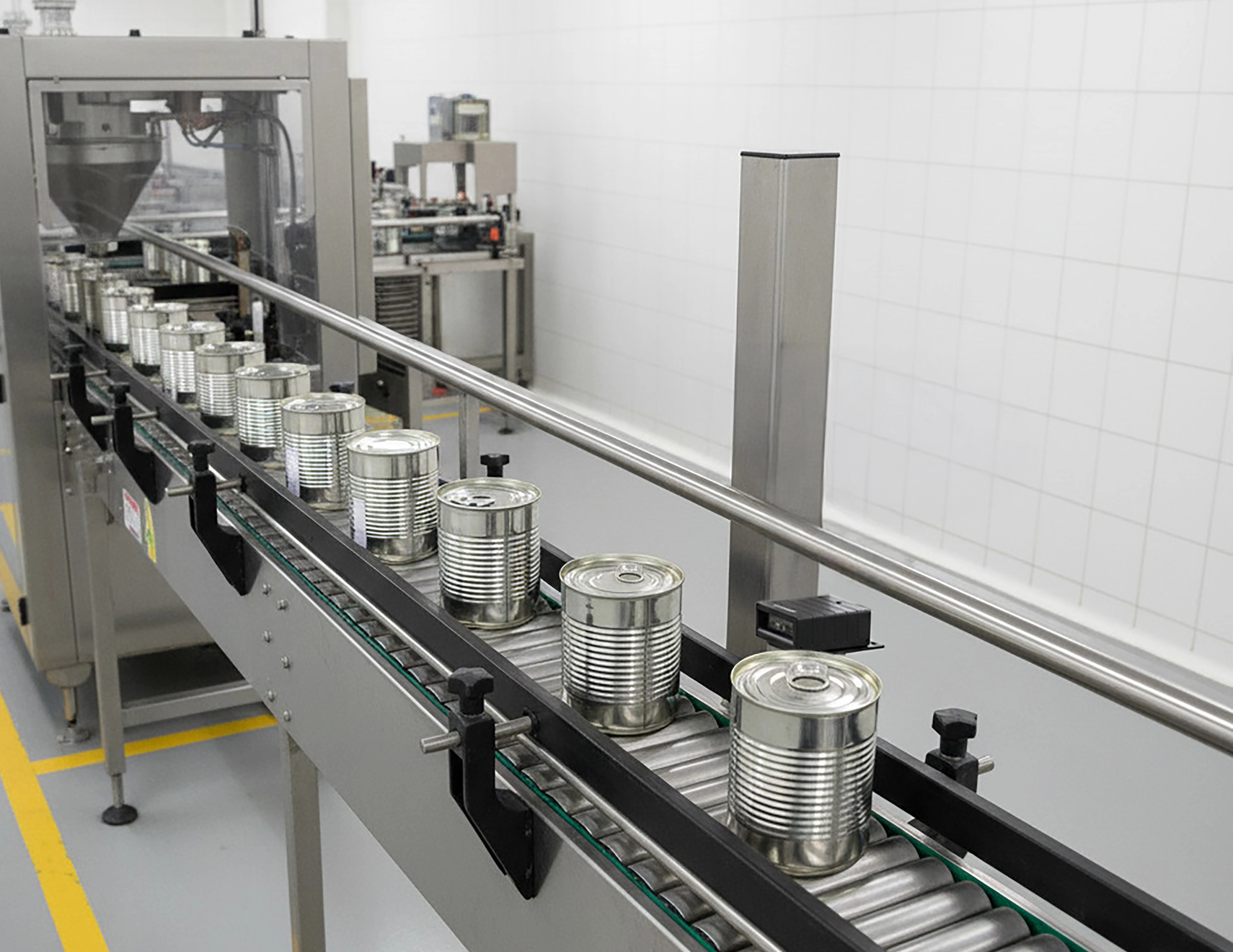

With built-in RS232 and USB interfaces, the FC75 offers flexible connectivity to various host systems. This versatility ensures smooth integration into POS terminals, industrial equipment, or automated systems, supporting a wide range of operational needs.





Hands-Free and On-Demand Scanning

Offering both presentation and trigger-activated modes, the FC75 delivers flexible operation for continuous hands-free scanning or precise on-demand reading. This versatility streamlines workflows and adapts seamlessly to different scanning scenarios.

FC75 compact fixed scanner in a workspace context

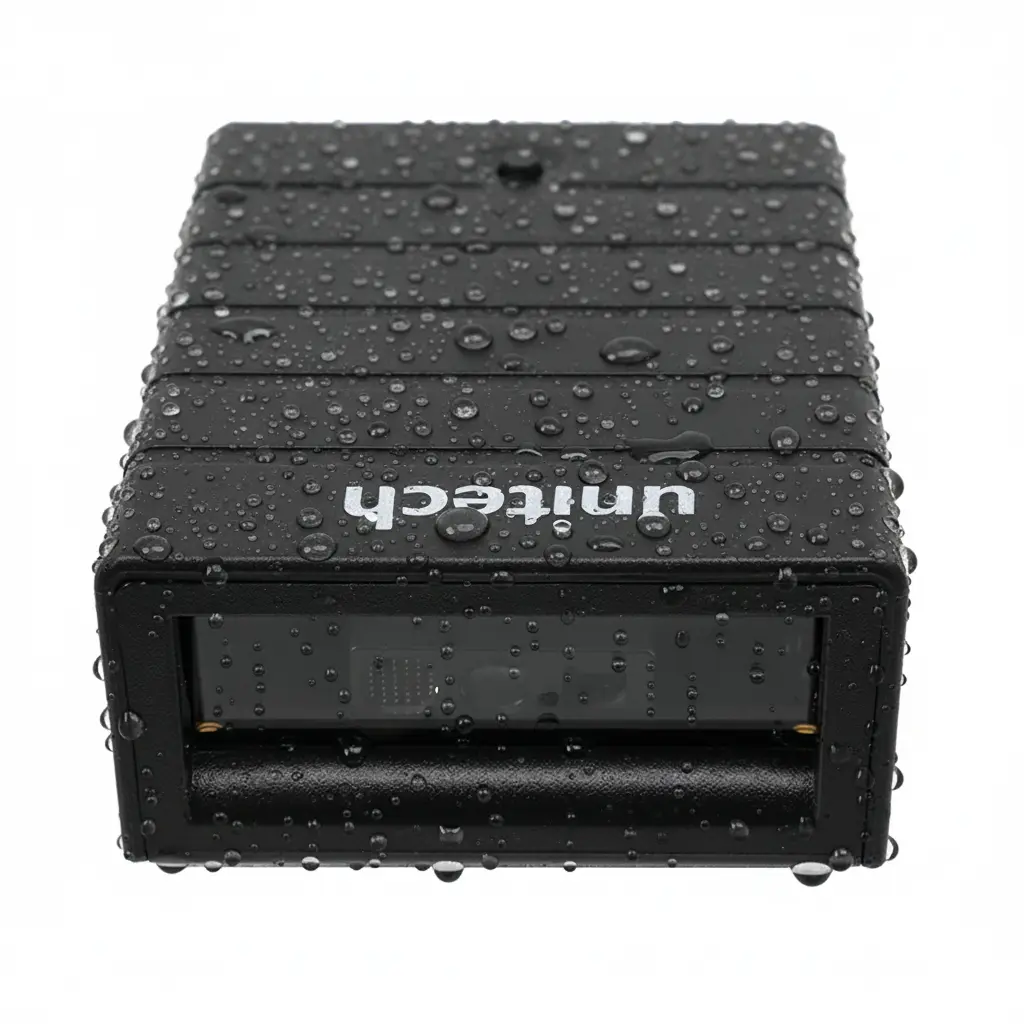

Rugged Design for Lasting Performance



Engineered for long-term use, the FC75 features IP42-rated protection against dust and moisture, and withstands multiple drops from 1.2 meters onto concrete. Its robust design helps ensure reliable performance and minimize maintenance costs over time.




IP42

Certification

1.2 M

Drop Protection

Specification

Optical & Performance

  • Sensor 1280 (H) x 960 (V) pixels
  • Aiming Element 610nm, Green LED
  • Illumination White LED
  • Ambient Light Works in any lighting conditions from 0 to 100,000 lux
  • Scan Rate 60 fps
  • Skew Angle Horizontal – 44.5°, Vertical – 33.5°
  • Pitch Angle Sensor ±60°
  • Roll Angle 360°
  • Printing Contrast Scale 20% Minimum
  • Depth of Field SYMBOLOGY: Near // Far
    5.0 mil Code 39: 2.4 in. (6.1 cm) // 9.5 in. (24.1 cm)
    5.0 mil Code 128: 2.8 in. (7.1 cm) // 9.0 in. (22.9 cm)
    6.67 mil PDF417: 2.4 in. (6.1 cm) // 8.0 in. (20.3 cm)
    10 mil Datamatrix: 2.9 in. (7.4 cm) // 8.5 in. (21.6 cm)
    100% UPCA: 1.8 in. (4.6 cm) // 19.5 in. (49.5 cm)
    15 mil QR: 1.2 in. (3.0 cm) // 11.5 in. (29.2 cm)
    20 mil QR: 1.2 in. (3.0 cm) // 14.0 in. (35.6 cm)

Communication

  • Host Interface supported RS232, USB (HID KBW or Virtual comport)

Mechanical

  • Dimension 56 mm x 69 mm x 27.7 mm
  • Weight 85g (scanner only)

Symbologies

  • 1D Barcodes EAN/UPC, UCC/EAN128, ISBN, ISBT, Code 39, Code 93/93i, Code 128, Interleaved, Standard 2 of 5, Codabar, MSI, GS1 DataBar
  • 2D Barcodes Data Matrix, PDF 417, Micro PDF 417, Maxicode, QR code, Aztec, MicroQR code

Electrical

  • Operation Voltage DC +5V±5%
  • Current Consumption 330mA

Environmental

  • ESD Protection ±8KV air discharge, ±4KV conductive discharge
  • Mechanical Shock 2000G, 0.85ms, half sinus, 3axes
  • Operating Temperature -20°C to 50°C (-4°F to 122°F)
  • Storage Temperature -30°C to 70°C (-22°F to 158°F)
  • Relative Humidity 5% to 95% (Non-condensing)
  • IP Rating IP42

Regulatory Approvals

  • Regulatory Approvals FCC

Warranty

  • Hardware Warranty 24 months
  • Statement This product is warranted against defects in workmanship and materials for a period of two years from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
